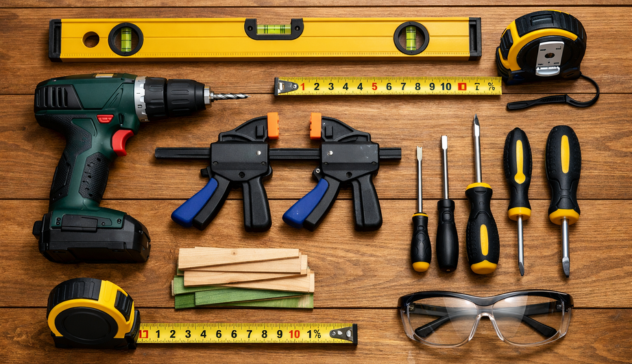

Measuring tape, level, drill and hand tools for installing RTA pantry cabinets — Prepare the measuring, leveling, fastening and safety equipment before assembling or positioning a tall pantry cabinet.

Installing a tall pantry cabinet requires more than a drill and a tape measure. The installer must confirm the opening, assemble the box square, move it safely, level it without twisting, clamp it in alignment and fasten it to suitable structural support.

This guide covers the tools needed to install pantry cabinets and separates essential tools, installation materials, optional fitting equipment and safety gear. It does not replace the cabinet instructions or determine the correct fastener for every wall. After preparing the tools, follow the complete pantry cabinet installation guide.

Quick Answer: What Tools Do You Need to Install a Pantry Cabinet?

Most pantry cabinet installations require a tape measure, pencil, square, level, stud finder, drill/driver, correct bits, clamps, shims or adjustable legs, approved cabinet fasteners, screwdrivers, utility knife, floor protection, eye protection and gloves. A laser level, scribing tools and cutting tools are optional when the layout or fillers require them.

1. Essential Measuring and Layout Tools

Measure and mark the installation before opening the hardware bags. Confirm the exact cabinet specification and record the smallest usable height and width, the floor high point, the cabinet face line, door swing and fastening area.

Tool	Primary Use	Preparation Check
Tape measure	Opening, cabinet, filler and clearance measurements	Use one tape throughout the project when possible.
Pencil and painter’s tape	Reference lines, studs and hardware notes	Use removable tape on finished surfaces.
Combination or framing square	Box squareness and perpendicular layout marks	Confirm the square is undamaged and accurate.
Straightedge	Wall bows, panel lines and cabinet-face alignment	Use a length that spans meaningful wall variations.
Layout sheet or notebook	SKU, measurements, appliance models and notes	Keep photographs with the matching measurements.

Use the separate guide on what to measure before installing a pantry cabinet before selecting fillers or moving the assembled unit into position.

2. Leveling and Alignment Tools

A tall cabinet must be checked side to side, front to back and vertically. Level the support system before final fastening; do not pull a twisted cabinet box into alignment with screws.

Tool or Material	Use	Important Note
Long spirit level	Cabinet sides, face and top reference	Verify the level before relying on it.
Short level	Tight spaces and localized checks	Do not use a short level as the only run reference.
Laser level — optional	High point, cabinet run and tall-panel alignment	Set it where the beam will not be disturbed.
Composite shims	Controlled support under or behind the cabinet	Support the load without twisting the box.
Adjustable legs and adjustment tool	Leveling systems designed for cabinet legs	Use only if supplied or approved for the cabinet system.

For floors or walls that are visibly out of level or plumb, review the dedicated guide to install cabinets on uneven floors and walls.

3. Drilling, Fastening and Clamping Tools

Fastening equipment must match the cabinet instructions and the actual wall construction. Wood framing, steel framing, masonry and walls with added blocking require different fasteners or installation methods.

Tool or Material	Primary Use	Selection Note
Stud finder / wall scanner	Locating likely framing and concealed-service risks	No detector identifies every pipe or wire; verify before drilling.
Drill/driver	Pilot holes and controlled screw installation	Use the clutch to reduce overtightening.
Impact driver — optional	Driving suitable structural fasteners	Avoid excessive torque on cabinet panels and hardware.
Correct drill and driver bits	Pilot, clearance and fastener installation	Match the bit and pilot size to the supplied hardware.
Padded cabinet clamps	Holding cabinets or panels flush before connection	Protect the finish and avoid deforming the cabinet side.
Approved cabinet fasteners	Structural wall and cabinet connection	Follow cabinet and fastener requirements; do not substitute general drywall screws.
Manual screwdrivers	Hinges, plates and final adjustment	Useful where power tools could strip small hardware.

Fastener warning: “cabinet screw” is not one universal specification. Confirm the wall material, structural support, required embedment, cabinet mounting area and manufacturer’s instructions. Use a qualified installer or appropriate trade when support or concealed services are uncertain.

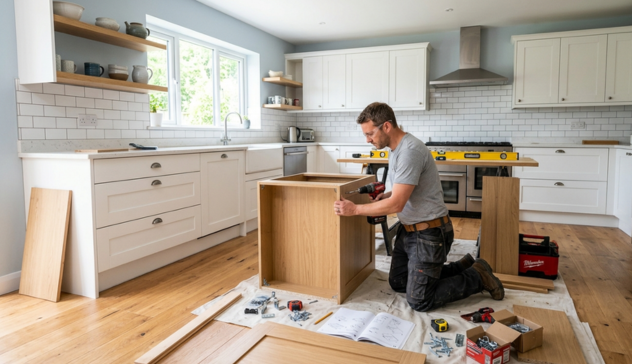

RTA cabinet box being assembled before pantry cabinet installation — Assemble the cabinet on a clean, protected surface and check the box for square before installing doors or moving it into position.

4. RTA Pantry Cabinet Assembly Tools

The exact RTA assembly tools depend on the connection system supplied with the cabinet. Inventory the panels and hardware first, then arrange the parts in assembly order.

✓Assembly instructions: confirm panel orientation, connector type, hinge locations and sequence.
✓Soft blanket, foam or clean cardboard: protects panels and doors during assembly.
✓Hardware trays or labelled containers: keep connectors, shelf pins and hinge screws separated.
✓Rubber mallet: allows gentle seating only where the instructions permit it.
✓Square and tape measure: compare diagonals and confirm the cabinet box is square.
✓Specified hand or driver bits: use only the tools required by the supplied connectors.

Do not install doors merely to make the tall cabinet heavier during lifting. Follow the product sequence and use the detailed RTA cabinet assembly guide when the unit arrives flat packed.

5. Optional Fitting and Finishing Tools

Cutting and scribing tools are optional because not every installation requires modified fillers, panels or trim. Use them only when the approved design calls for fitting work and the operator can control the tool safely.

Optional Tool	When It Helps	Control Needed
Scribing compass	Transferring an uneven wall profile to a filler	Test the offset on scrap material.
Jigsaw or track/circular saw	Approved filler, panel or toe-kick cuts	Use a suitable blade, support and cutting guide.
Oscillating multi-tool	Localized trim work where permitted	Check for wiring and pipes before cutting.
File, sanding block or edge-finishing tool	Minor refinement of approved cut edges	Protect visible finishes and exposed core material.
Vacuum or dust extraction	Keeping the site and hardware clean	Use extraction suitable for the material being cut.

6. Safety Gear and Site Protection

Tall pantry cabinets can be heavy and awkward even before shelves and doors are installed. Plan the lifting path, protect finished surfaces and keep helpers clear of pinch points.

✓Safety glasses: use during drilling, cutting and overhead work.
✓Work gloves: protect hands while moving panels; remove them if they interfere with safe tool control.
✓Hearing and respiratory protection: select them for the cutting tool and material.
✓Floor and corner protection: use clean coverings that will not become a slip hazard.
✓Stable step ladder: use the correct working height; do not stand on cabinets or boxes.
✓Two-person handling plan: coordinate the lift and verify ceiling and doorway clearance before moving.

Stop before drilling or cutting if the wall construction, support, electrical route, plumbing or cabinet instructions are uncertain. Do not load the pantry until it is level, stable and properly secured.

7. Pre-Installation Tool and Material Check

Check	Ready When
Product and hardware	SKU, panels, connectors, legs, hinges, fillers and instructions match the order.
Measurements	Opening, tip-up path, clearances and floor/wall conditions have been checked twice.
Power tools	Batteries are charged and correct bits, blades and extraction are available.
Fasteners	Approved type, length, quantity and structural support have been confirmed.
Leveling	Level, laser if used, shims or adjustment tool are ready.
Safety	PPE, stable ladder, protected route and sufficient helpers are available.
Final adjustment	Manual screwdrivers, hinge instructions and shelf hardware are organized.

Need Help Confirming the Cabinet and Installation Plan?

Bring the selected cabinet SKU, site measurements, wall information and appliance model numbers to the design review. This helps identify required fillers, panels and installation considerations before ordering.

Book a kitchen design consultation

Frequently Asked Questions

What are the essential tools for installing a pantry cabinet?

The essential kit normally includes a tape measure, pencil, square, level, stud finder, drill/driver, correct bits, padded clamps, shims or the cabinet’s leg-adjustment tool, approved fasteners, screwdrivers, floor protection and suitable personal protective equipment.

Do I need a laser level to install a pantry cabinet?

A laser level is useful but not mandatory for one cabinet. A verified long spirit level can check the cabinet side to side, front to back and vertically. A laser becomes more helpful when aligning a pantry with a longer cabinet run or multiple panels.

Can I use an impact driver for cabinet installation?

An impact driver may be appropriate for certain structural fasteners, but it can overtighten screws or damage cabinet material. Use the specified fastener and bit, control the torque and use a drill/driver or hand screwdriver where greater control is required.

What screws should I use to secure a pantry cabinet?

Fastener selection depends on the cabinet mounting area, wall material, structural support and manufacturer’s instructions. Use approved cabinet or structural fasteners for the verified substrate. Do not rely on drywall alone or substitute general drywall screws.

Are shims always required?

Not every installation needs separate shims. Cabinets with adjustable legs may use their designed leveling system. Shims are used where appropriate to provide stable support or compensate for wall variation without twisting the cabinet box.

Can one person install a tall pantry cabinet?

Tall assembled cabinets are awkward to control and may require more than one person or appropriate lifting equipment. Check the weight, route, ceiling clearance and product instructions before moving the cabinet. Do not attempt a lift that cannot be controlled safely.
